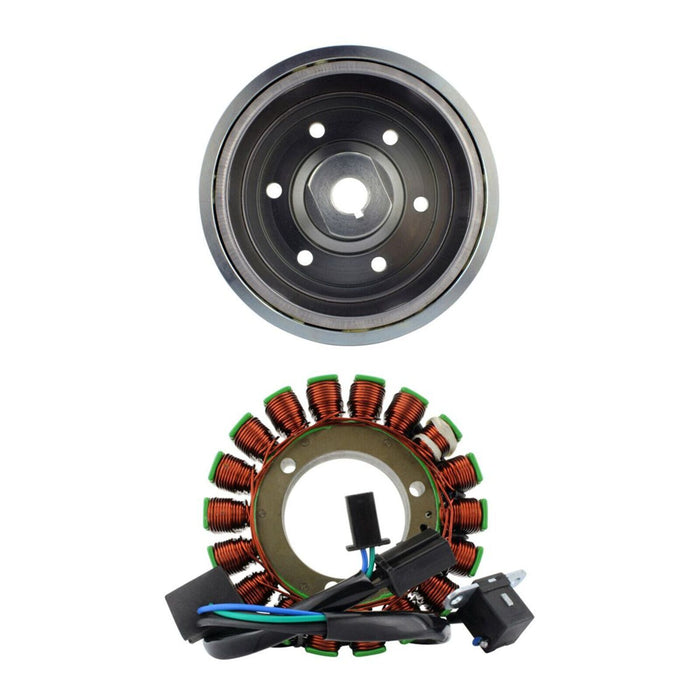

RM Stator & Flywheel Kit - Suzuki DL1000 '02-'09 & '12 (RMS900-108092)

Name: RM Stator & Flywheel Kit - Suzuki DL1000 '02-'09 & '12 (RMS900-108092)
Brand: RMSTATOR
SKU: RMS900108092
Price: 863.3 AUD
Availability: OutOfStock

RMSTATOR

Sold out

$863.30 - $863.30

$863.30

$863.30 - $863.30

$863.30

Out Of Stock Dispatched within 2 working days Out Of Stock

Quantity

More payment options

Product Information

Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Highest grade of lamination materials.
Highest grade of copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Stator:

Dim ensions:
- Interior diameter: 54 mm
- Exterior diameter: 119 mm
- Thickness: 25 mm
- Length of wires stator to grommet: 160 mm
- Length of wires grommet to plug: 430 mm
- Length of pickup coil's wire to grommet: 150 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
- Wire to wire resistance:
  - Alternator: Black to Black = 0.6 ohms +-20%
  - Pickup: Blue to Green = 193 ohms +-20%

Flywheel:

Dimensions:
- Inner Diameter: 120 mm
- Outer Diameter: 149 mm
- Total Height: 65 mm
- Inside Height: 46 mm
- Center Housing Depth: 35 mm
- Center Housing Widest: 35 mm
- Center Housing Thickness: 26 mm

Part Number

RMS900108092
