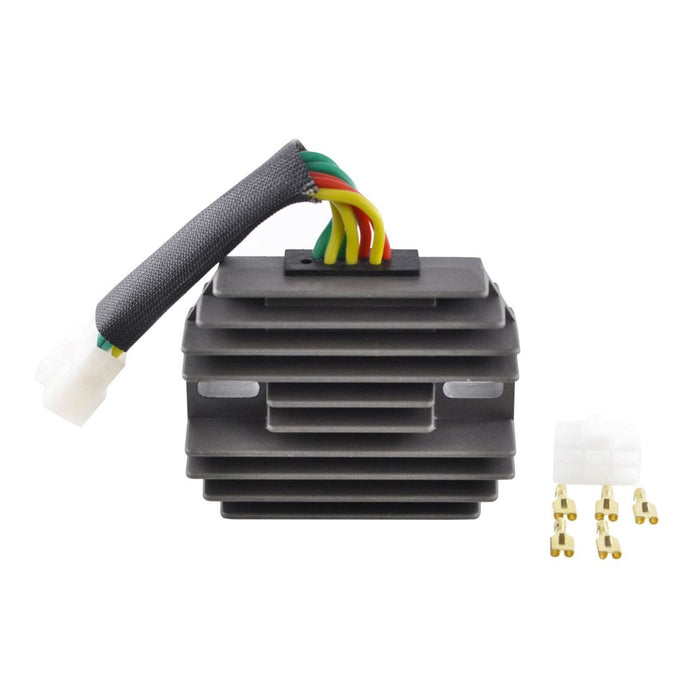

REGULATOR RECTIFIER SUZU GSXR 600 750 1000

RMSTATOR

Our Price

$213.40 - $213.40

$213.40 - $213.40

$213.40

$213.40 - $213.40

$213.40

Dispatched within 2 working days Dispatched within 2 working days Out Of Stock

Quantity

More payment options

Product Information

Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required
The Quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components.
All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
- Width: 80mm
- Length: 103mm
- Height: 32mm
- Fixation holes centre to centre: 75mm
- Wires length: 120mm
Other Specifications:
- Number of plugs: 1
- Number of pins: 5
- Minimum Charging Voltage: 14.5V ± 0.5V
- Maximum Charging Current: 25A-35A/300W-500W
- Open Circuit Voltage: <15V
- Operating Temperature: -20°C to 85°C

Part Number

RMS30412
