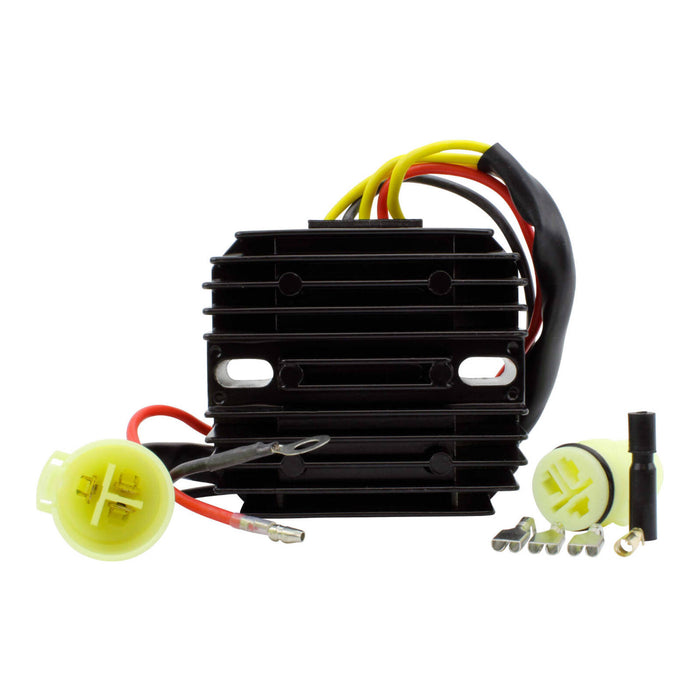

Rectifier - Yamaha / Mercury Outboard (RMS020-106013)

RMSTATOR

Our Price

$261.90 - $261.90

$261.90 - $261.90

$261.90

$261.90 - $261.90

$261.90

Dispatched within 2 working days Dispatched within 2 working days Out Of Stock

Quantity

More payment options

Product Information

Brand new aftermarket Voltage Regulator Rectifier

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
No assembly required
Higher-grade of electric components
The quality exceeds the OEM equipment
All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

Specifications:

Dimensions: p>

Width: 80 mm
Length: 90 mm
Height: 26 mm
Wires length: 280 mm
Fixation holes center to center: 65 mm

Other specifications:

Number of plugs: 1
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

Part Number

RMS020106013
