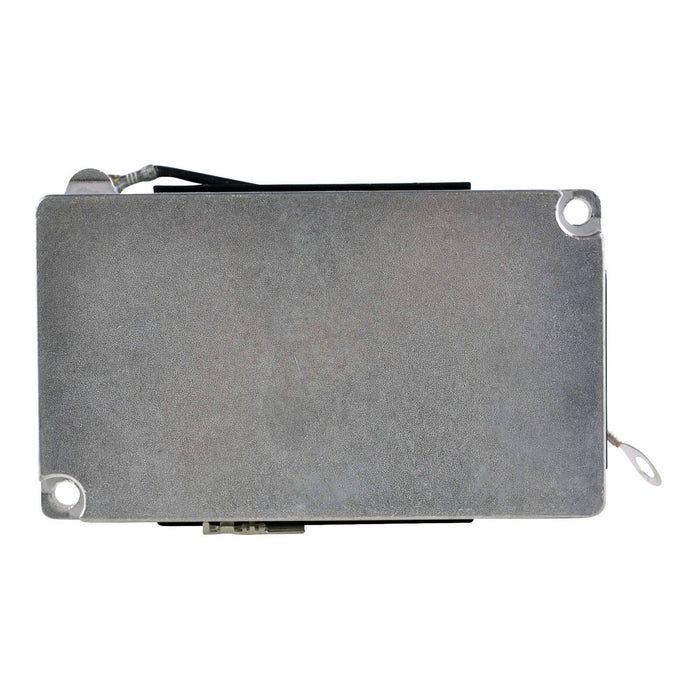

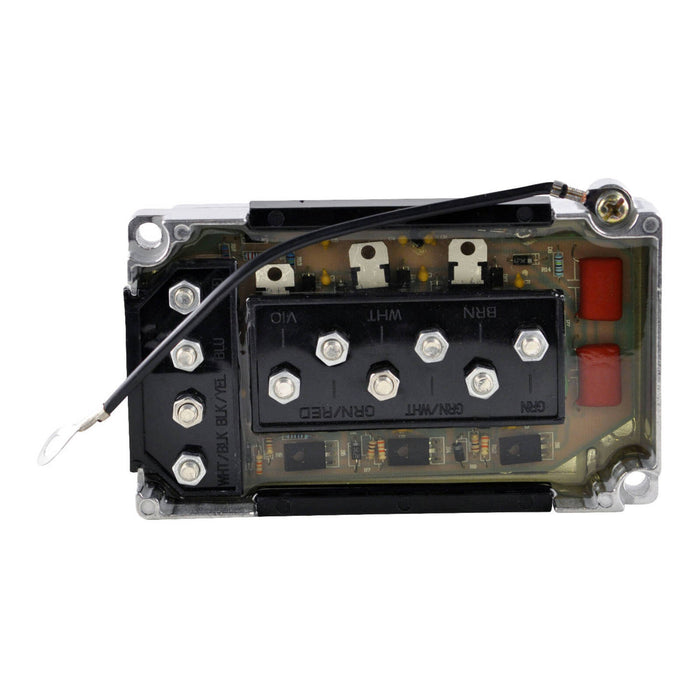

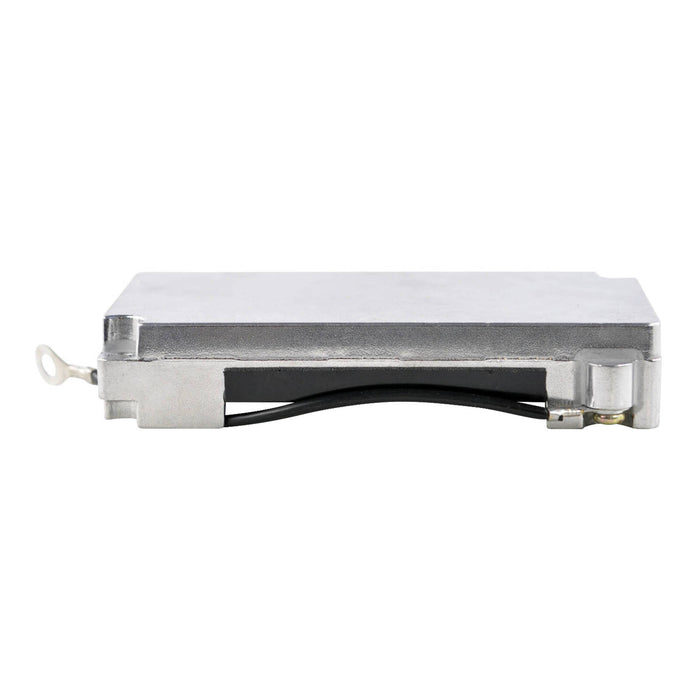

CDI Box – Mercury Outboard (Refer to Fitments) (RMS030-100048)

CDI Box – Mercury Outboard (Refer to Fitments) (RMS030-100048)

RMSTATOR

SKU RMS030100048

Our Price

$310.40 - $310.40

$310.40

$310.40 - $310.40

$310.40

Dispatched within 2 working days Dispatched within 2 working days Out Of Stock

Quantity

Product Information

Plug-and-play, aftermarket replacement CDI box for Mercury outboard motors from RM Stator. Refer to fitment guide for models.

Dimensions:

Width: 79mm
Length: 136mm
Height: 26mm
Fixation holes, centre to centre: 143mm

Installation:

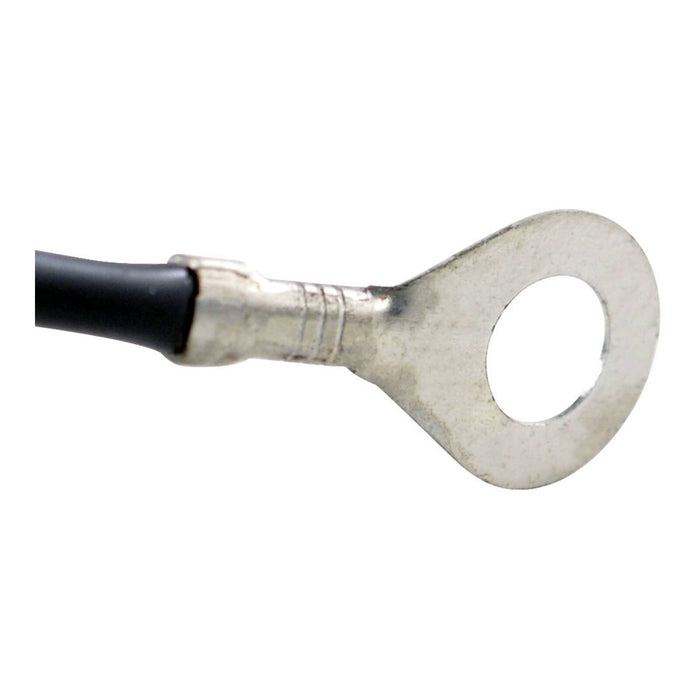

If the Black Ground Wire is Not Already Connected to the CDI Box, fasten to One of the 4 Mounting Holes on the Outside of the Box
Fasten the Other End of This Black Wire to a Good Ground Spot on the Engine.
If the Engine Uses an Orange Colored Lead That is Connected to the Box, Connect This to the "Black/Yellow" Stud on the New Box.
