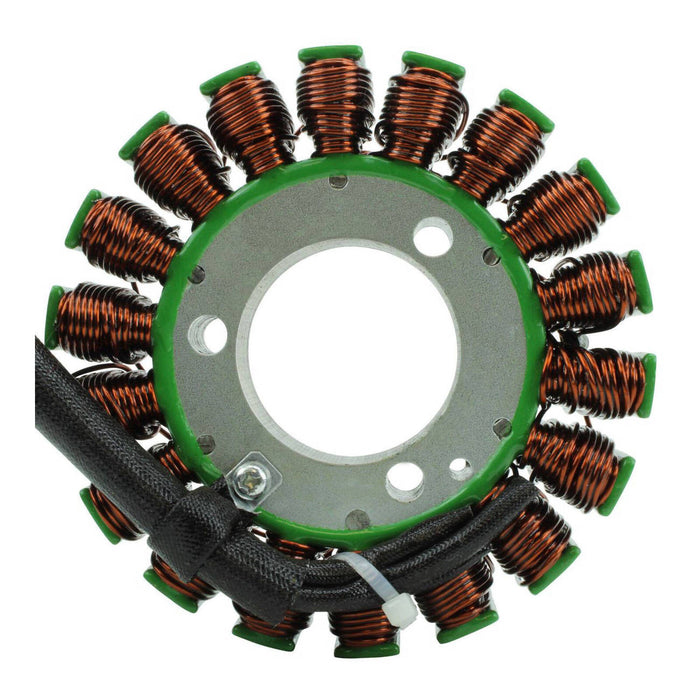

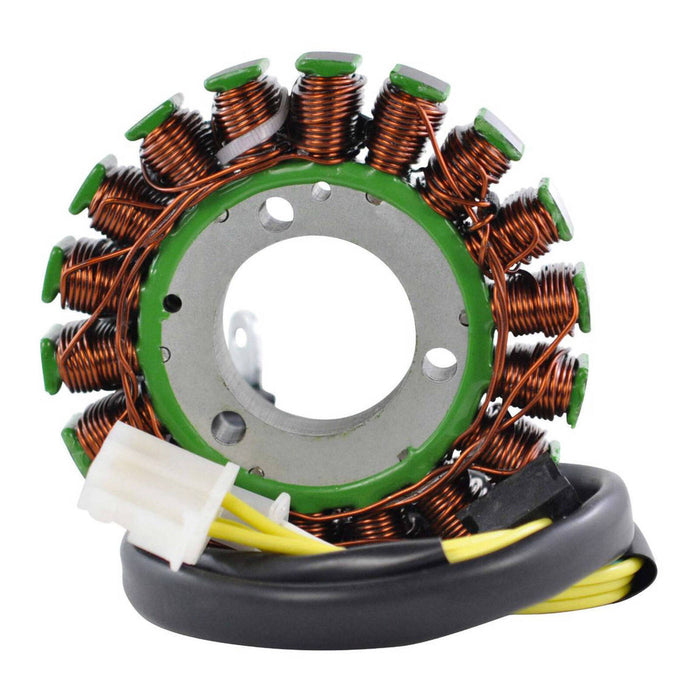

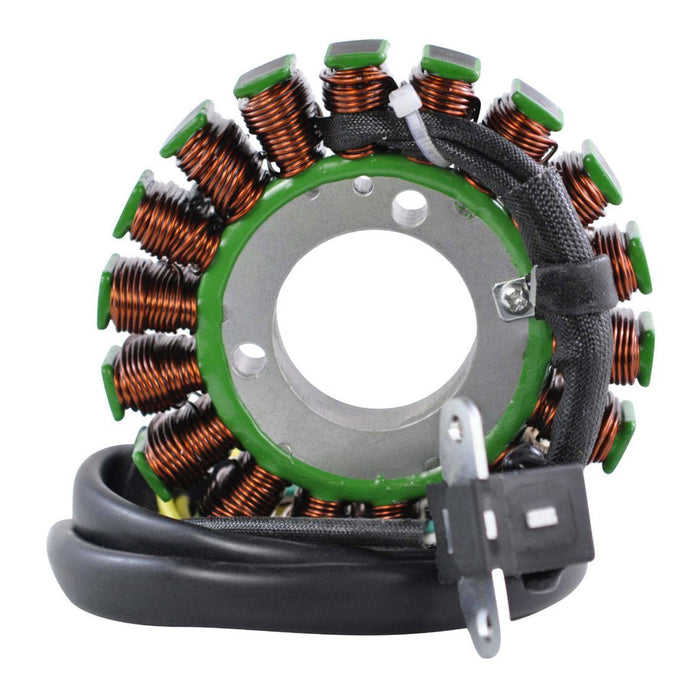

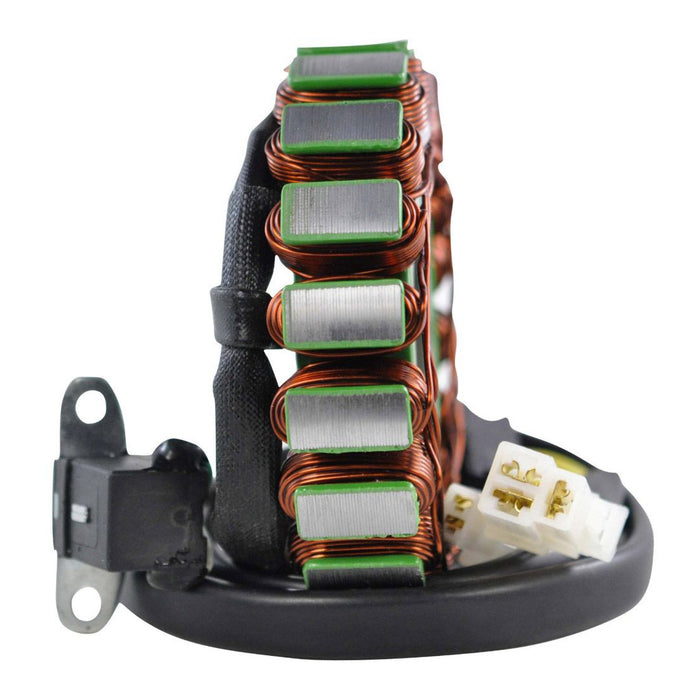

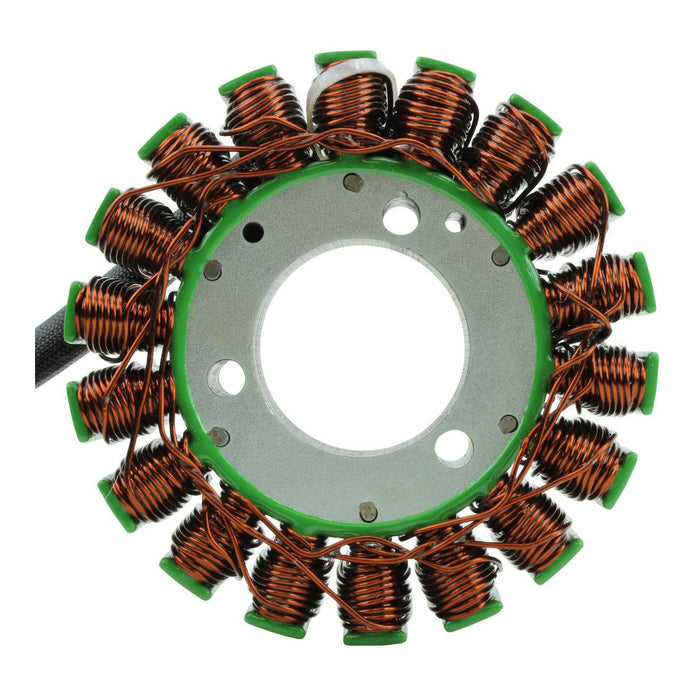

Plug-and-play replacement generator stator from RM Stator. See fitment guide for model details.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.

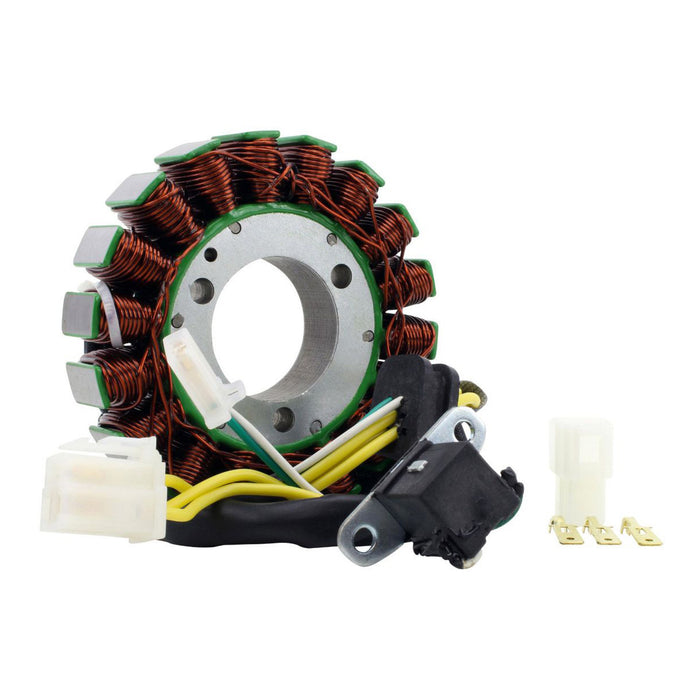

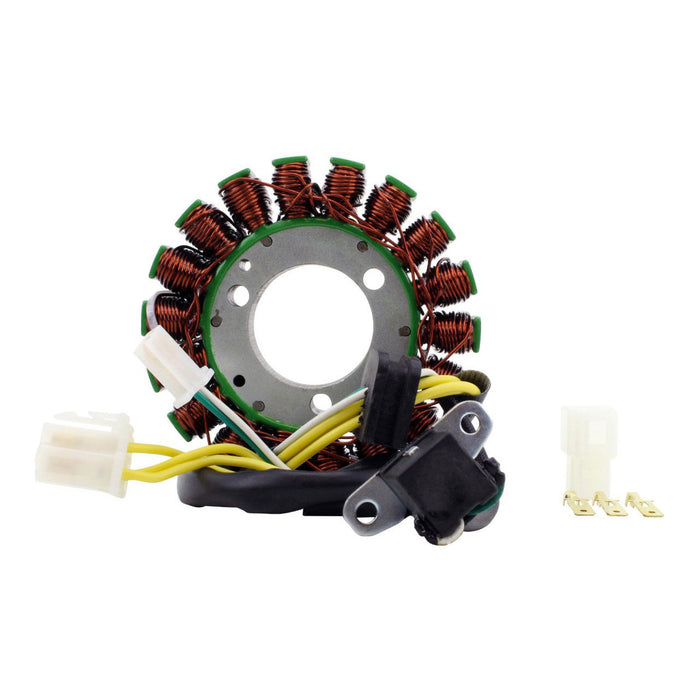

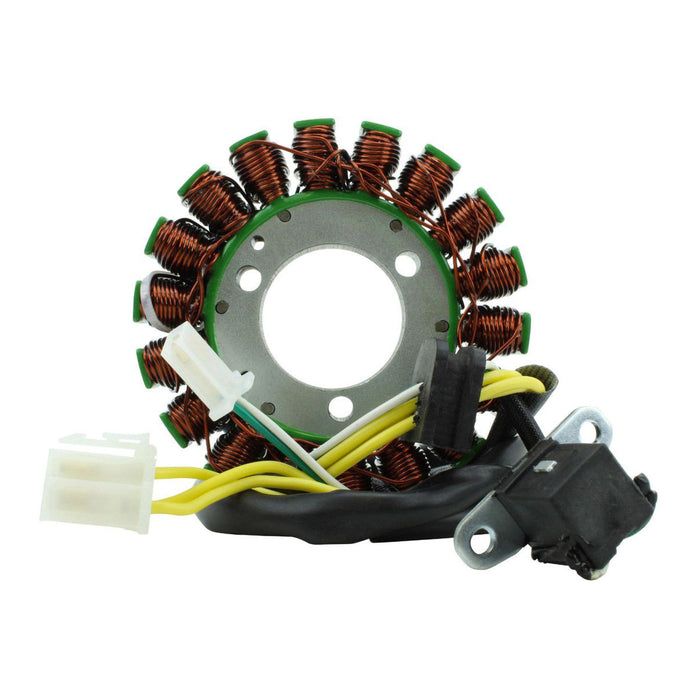

• Pick up pulsar coil included.

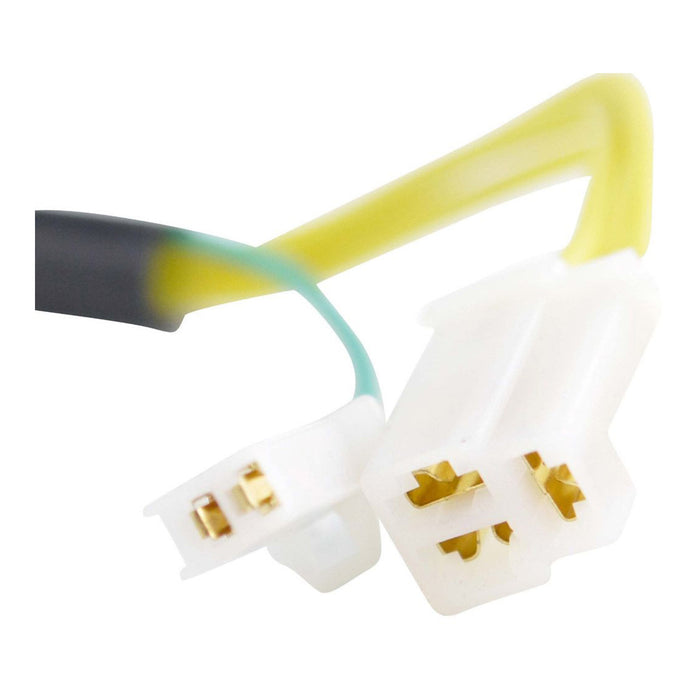

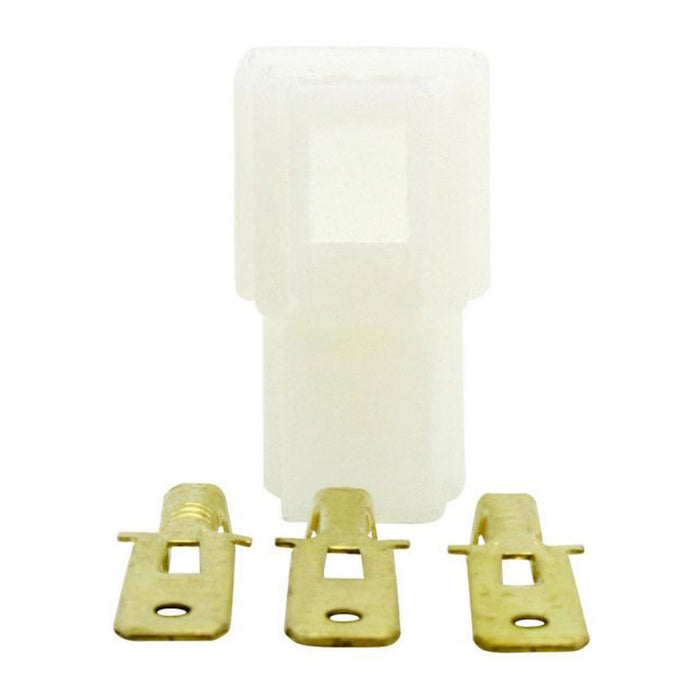

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

Dimensions:

• Interior diameter: 38mm
• Exterior diameter: 105mm
• Thickness: 19mm
• Length of wires stator to grommet: 120mm
• Length of wires grommet to plug: 650mm
• Length of pickup coil's wire to grommet: 60mm

Other specifications:

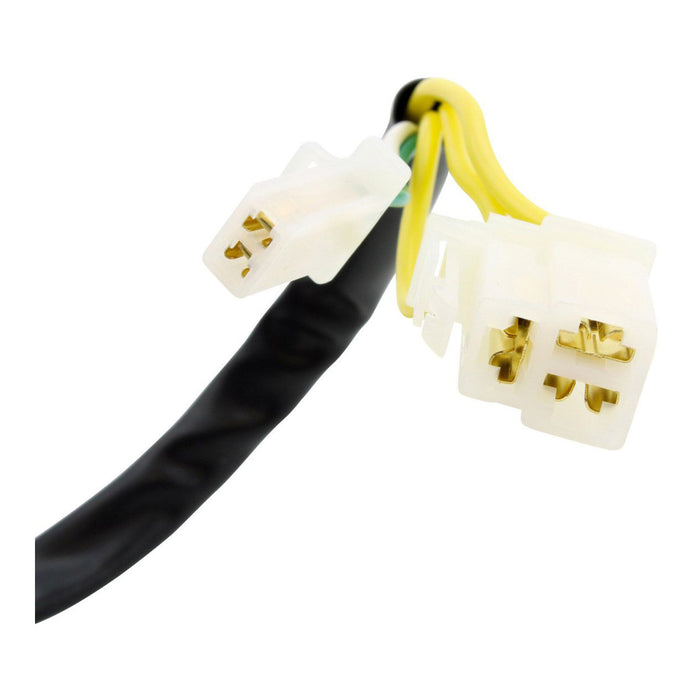

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Wire to wire resistance:
  • Alternator: Yellow to Yellow = 0.7 ohms +-20%
  • Pickup: Green to White = 195 ohms +/- 20%
