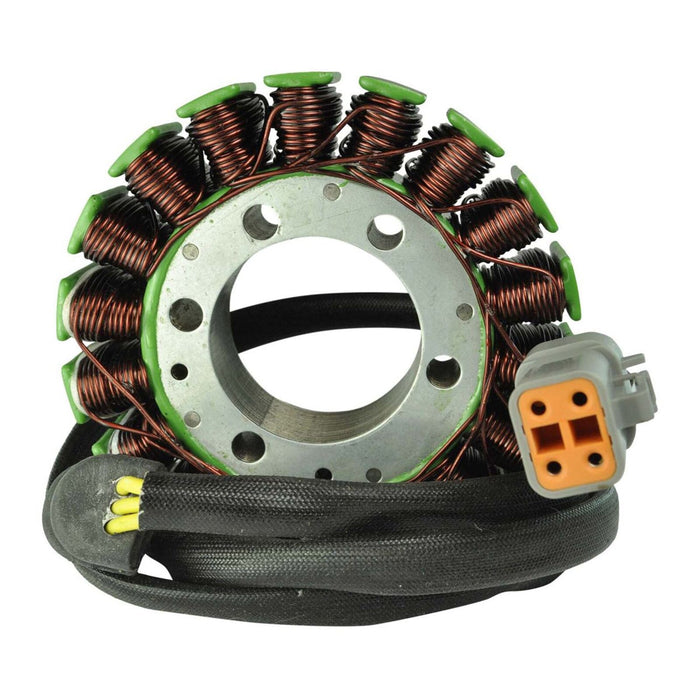

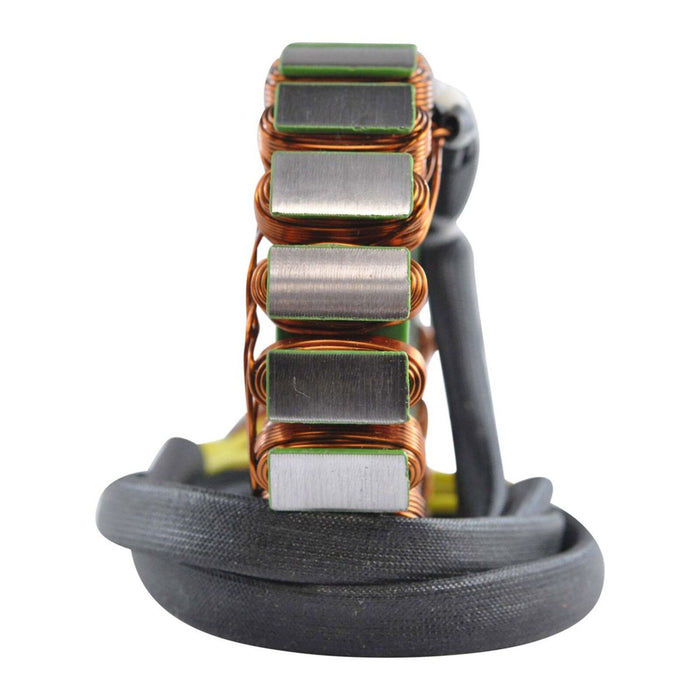

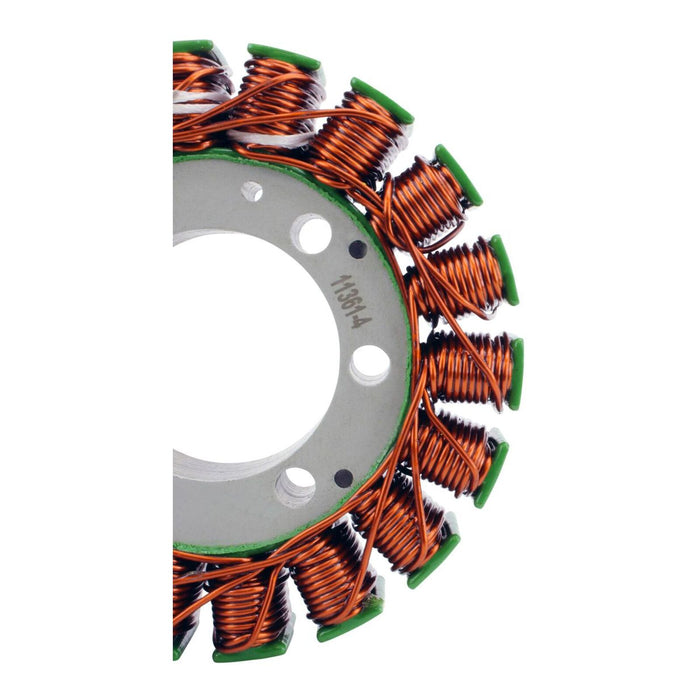

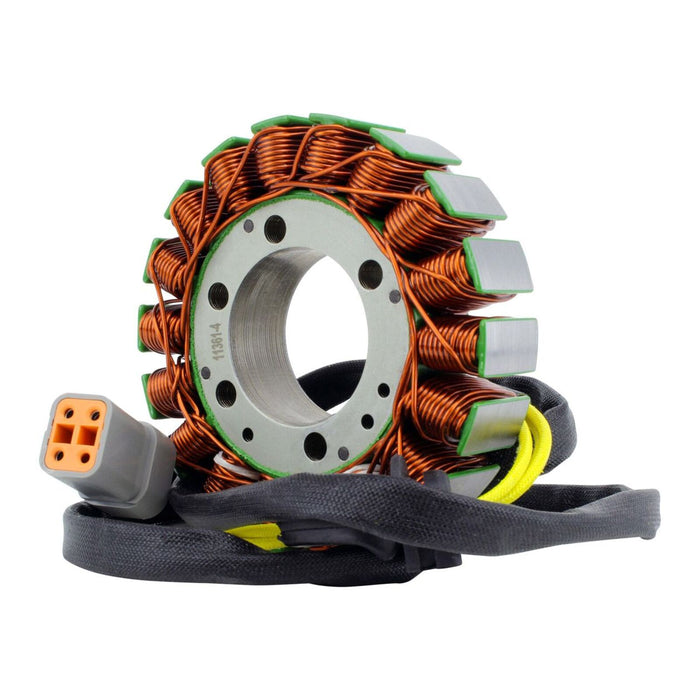

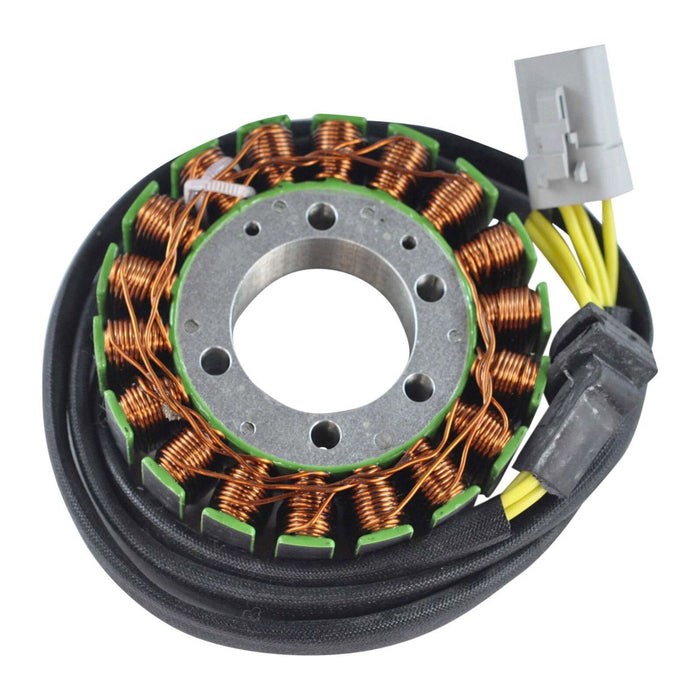

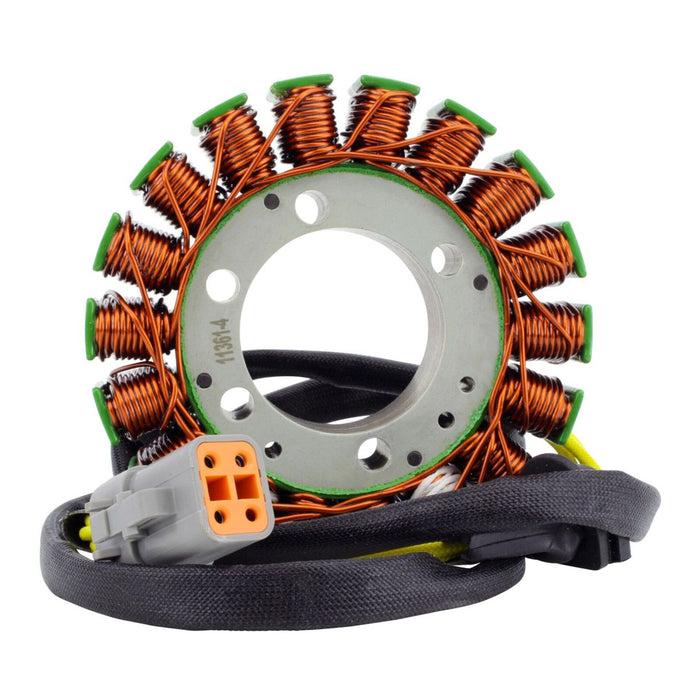

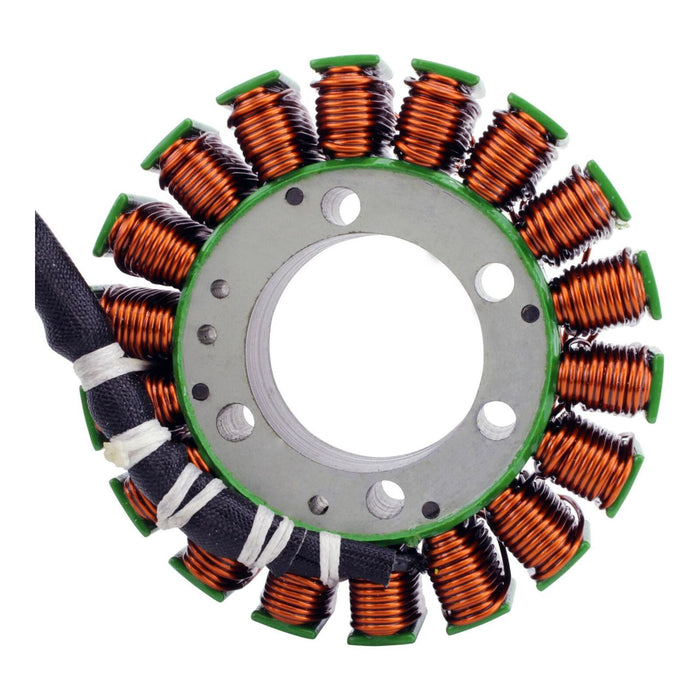

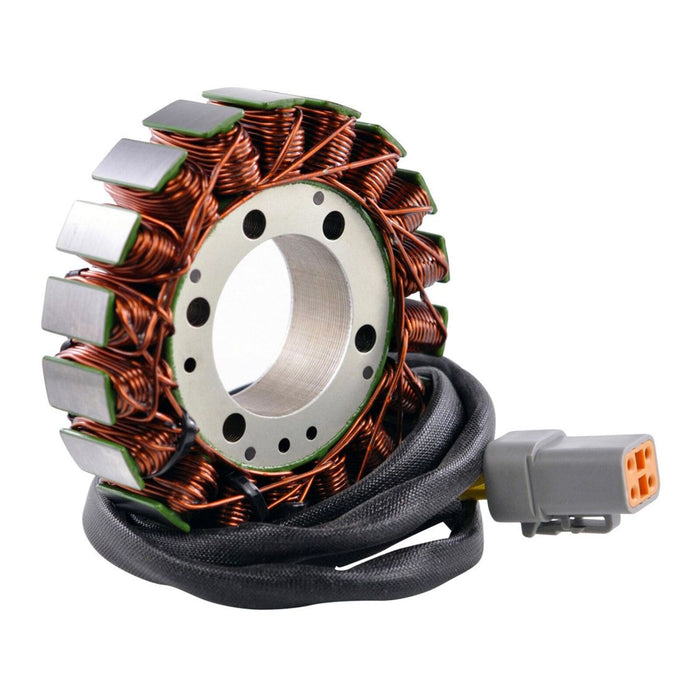

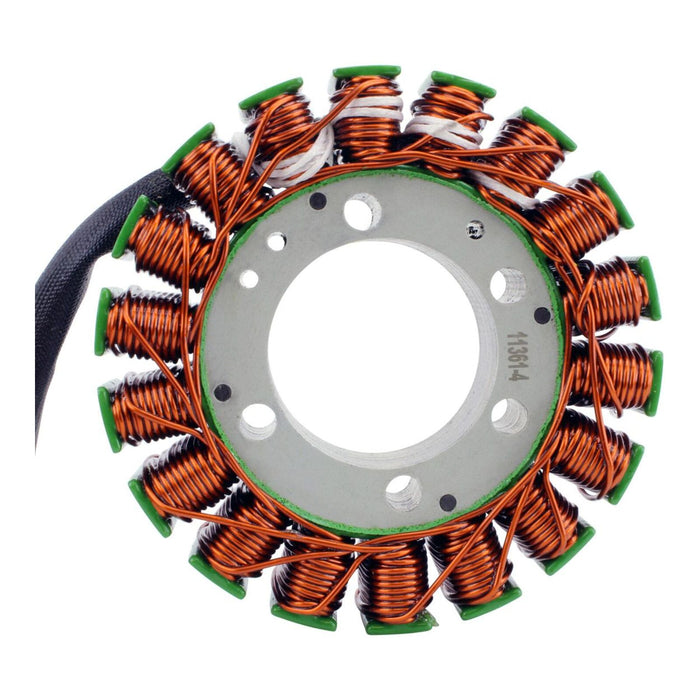

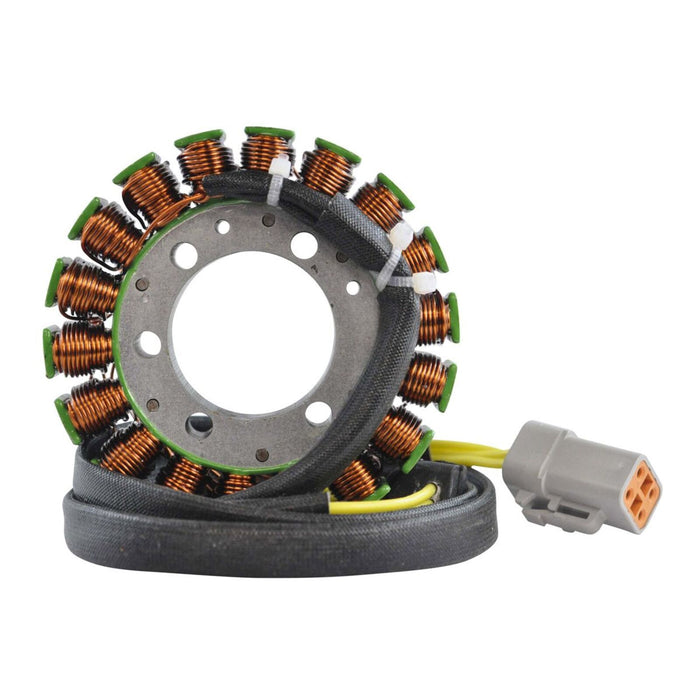

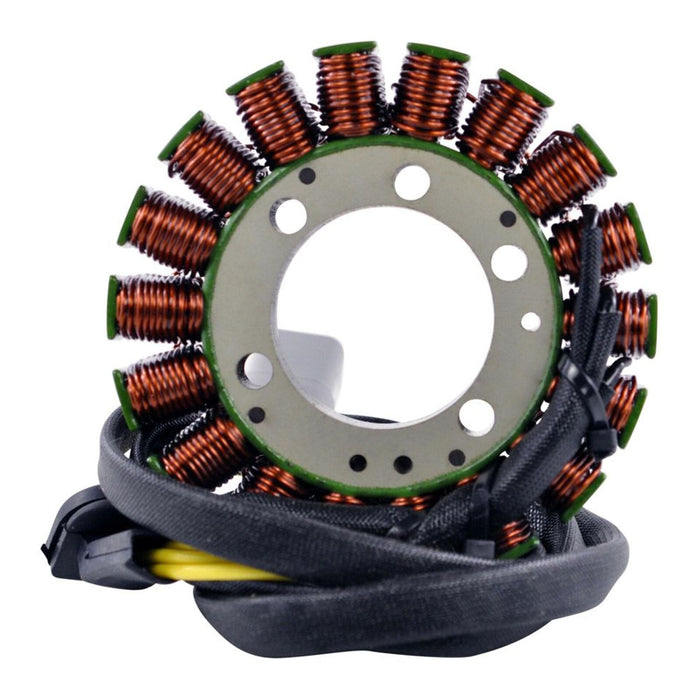

GENERATOR STATOR CAN-AM OUTLANDER

GENERATOR STATOR CAN-AM OUTLANDER

RMSTATOR

SKU RMS01267

Our Price

$349.20 - $349.20

$349.20

$349.20 - $349.20

$349.20

Dispatched within 2 working days Dispatched within 2 working days Out Of Stock

Quantity

Product Information

Plug-and-play, aftermarket replacement generator stator from RM Stator.

Dimensions:

Interior diameter: 41mm
Exterior diameter: 104mm
Thickness: 30mm
Length of wires — stator to grommet: 140mm
Length of wires — grommet to plug: 850mm

Other specifications:

Number of wires: 3
Number of plugs: 1
Number of pins: 3
Wire to wire resistance:
- Alternator: Yellow to Yellow = 0.4 ohms +-20%

Details:

Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

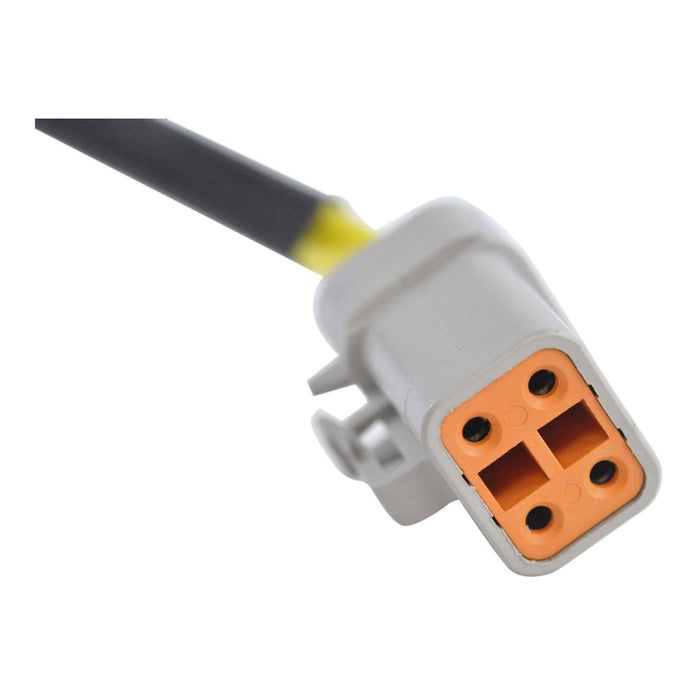

Connector included
Rubber grommet included
All products shipped are tested
