GENERATOR STATOR KAWA KRF 750 TERYX 2013

GENERATOR STATOR KAWA KRF 750 TERYX 2013

RMSTATOR

SKU RMS010107593

Our Price

$310.40 - $310.40

$310.40

$310.40 - $310.40

$310.40

Dispatched within 2 working days Dispatched within 2 working days Out Of Stock

Quantity

Product Information

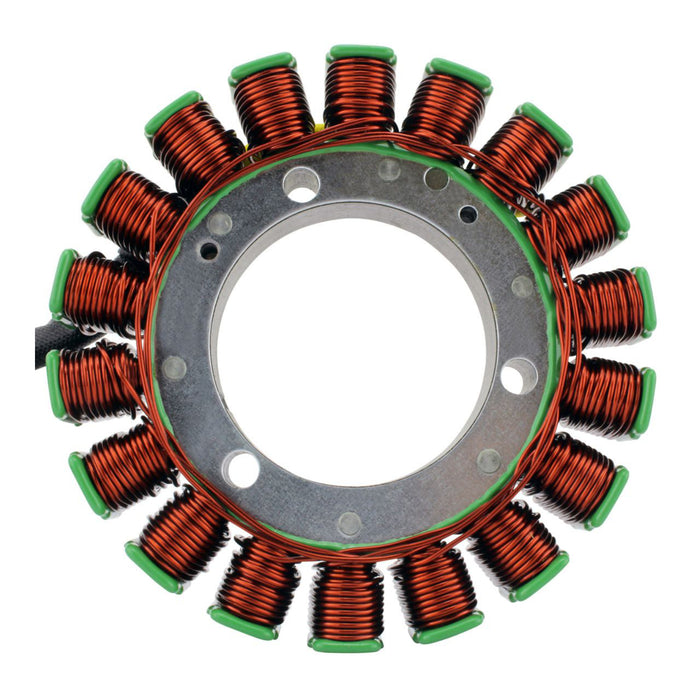

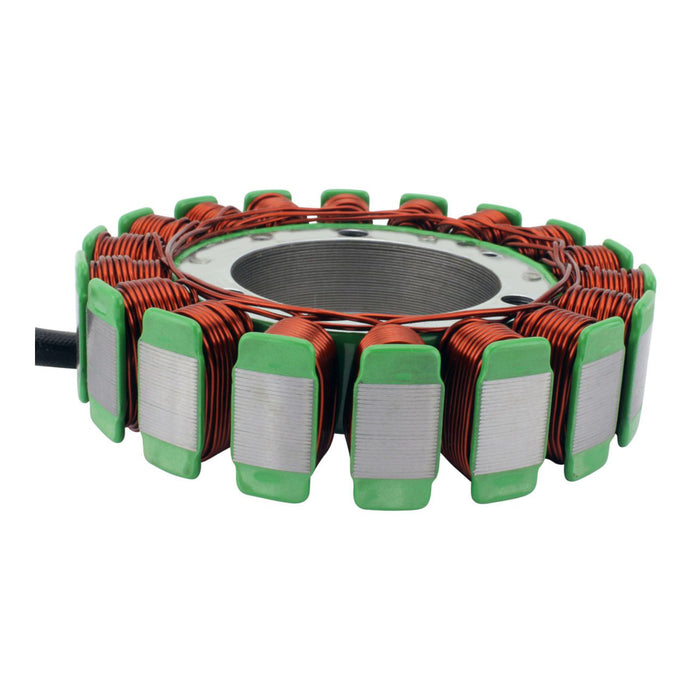

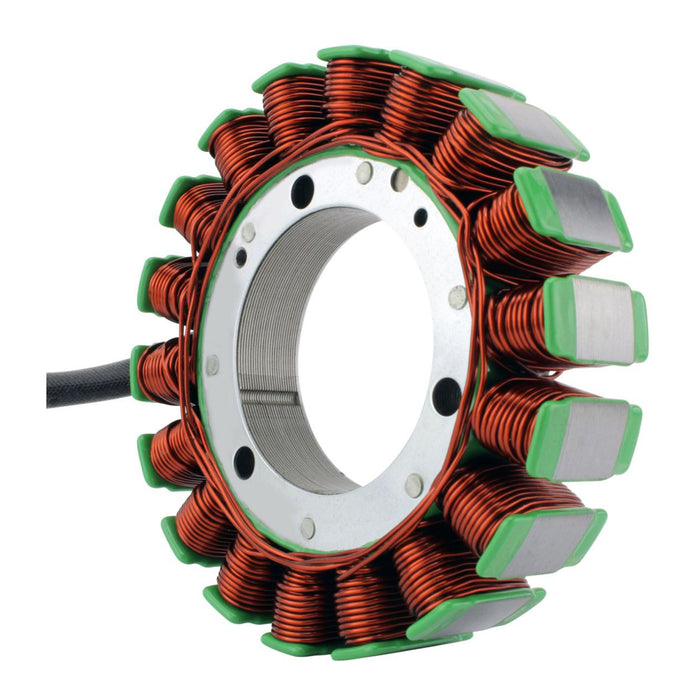

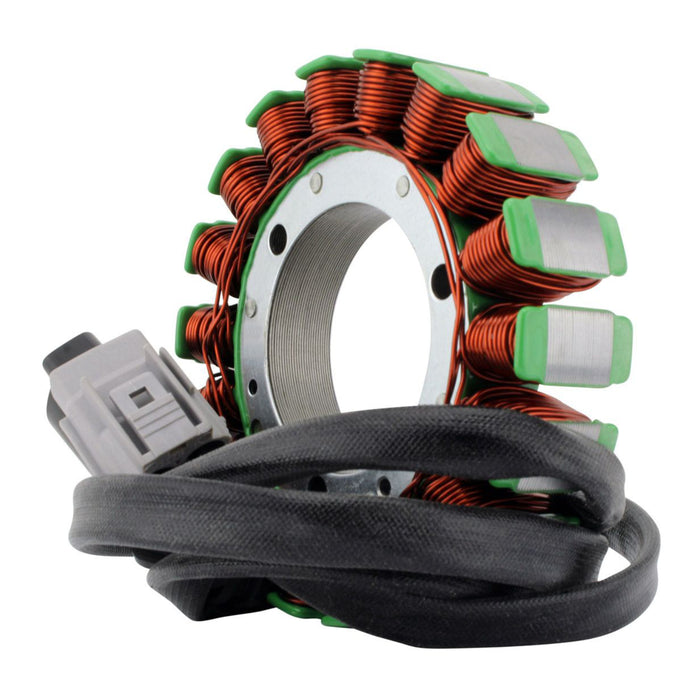

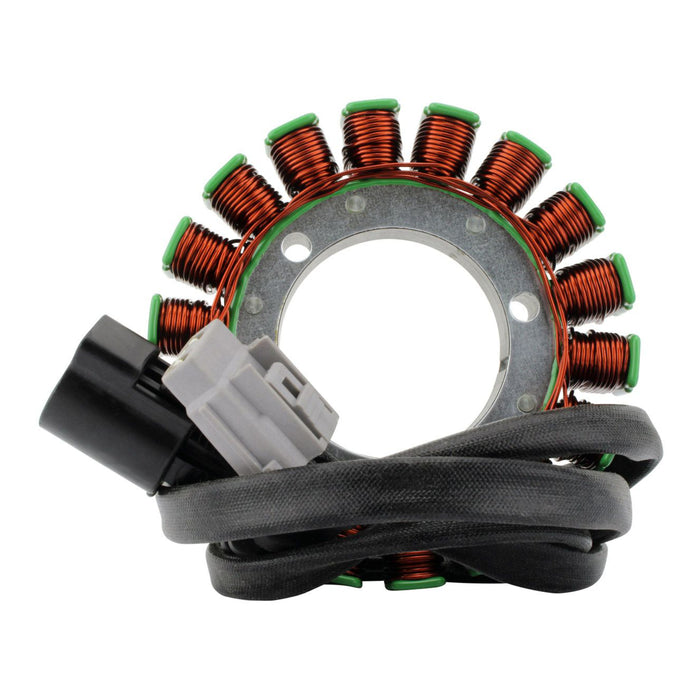

Plug-and-play aftermarket replacement generator stator from RM Stator.

Dimensions:

Interior diameter: 54mm
Exterior diameter: 115mm
Thickness: 18mm
Length of wires stator to grommet: 160mm
Length of wires grommet to plug: 840mm

Other specifications:

Number of wires: 3
Number of plugs: 2
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
- Alternator: Black to Black = 0.4 ohms +-20%
- Alternator: Black to ground = O.L

Details:

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

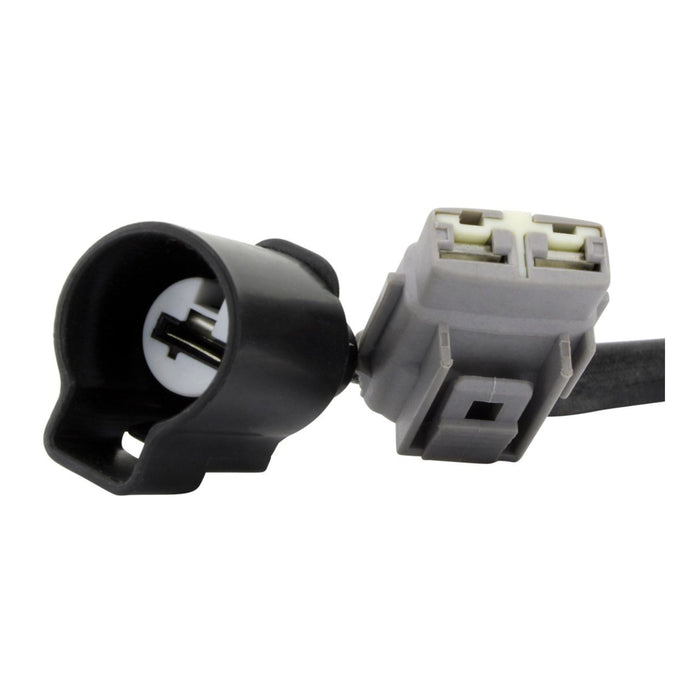

Connectors included
Rubber grommet included
All products shipped are tested
