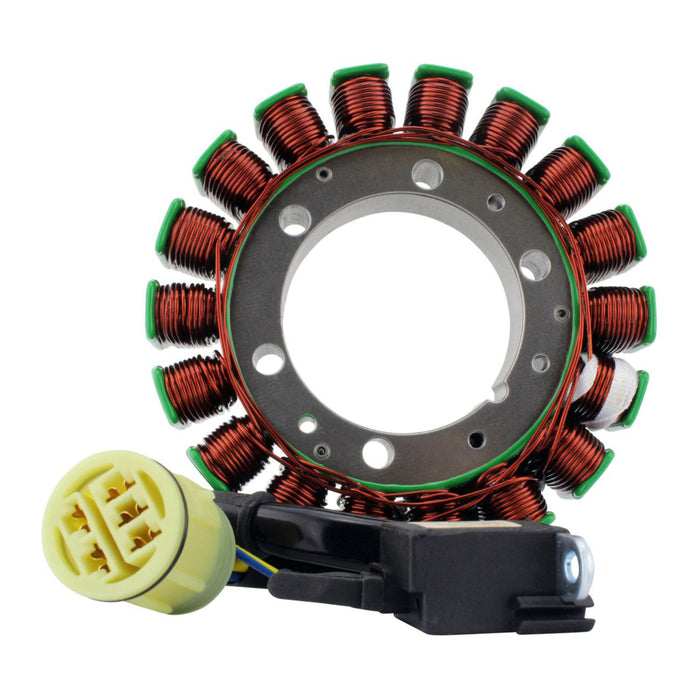

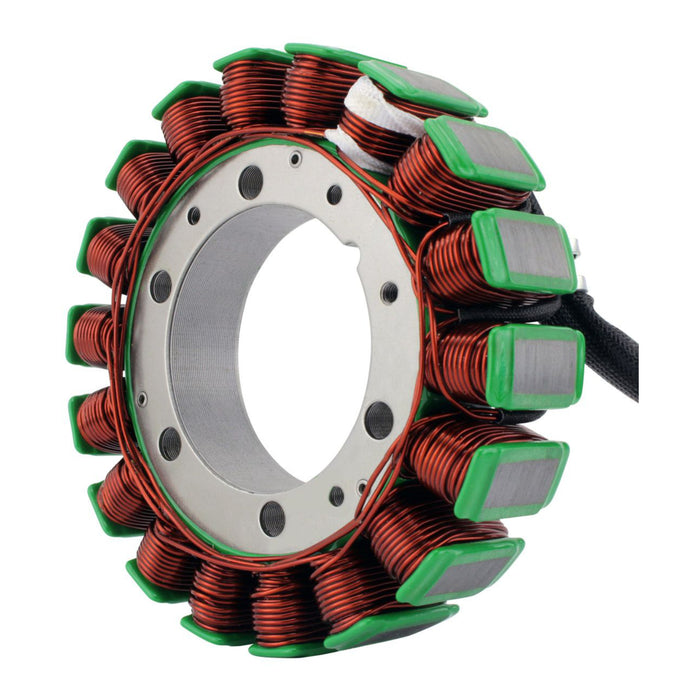

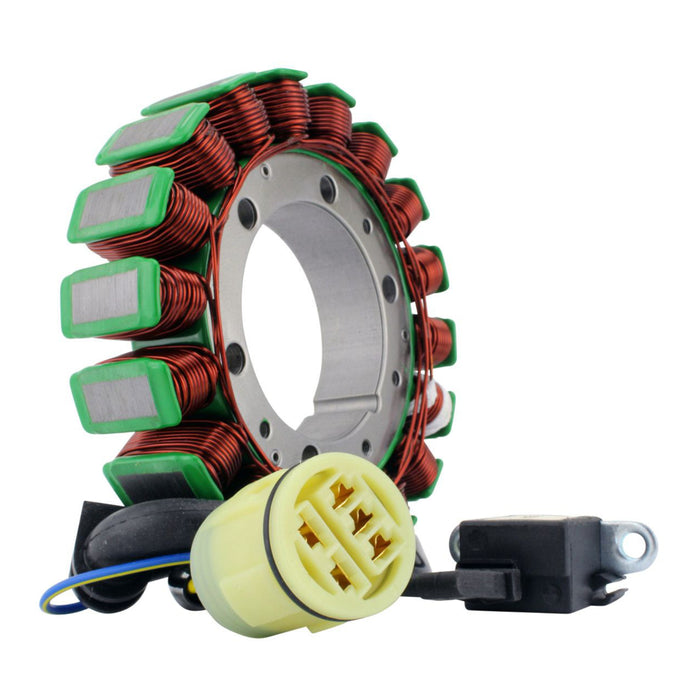

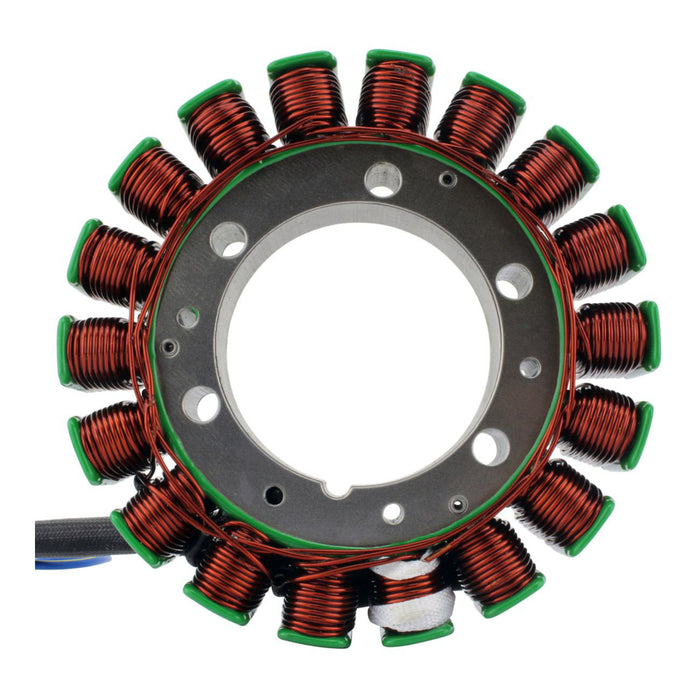

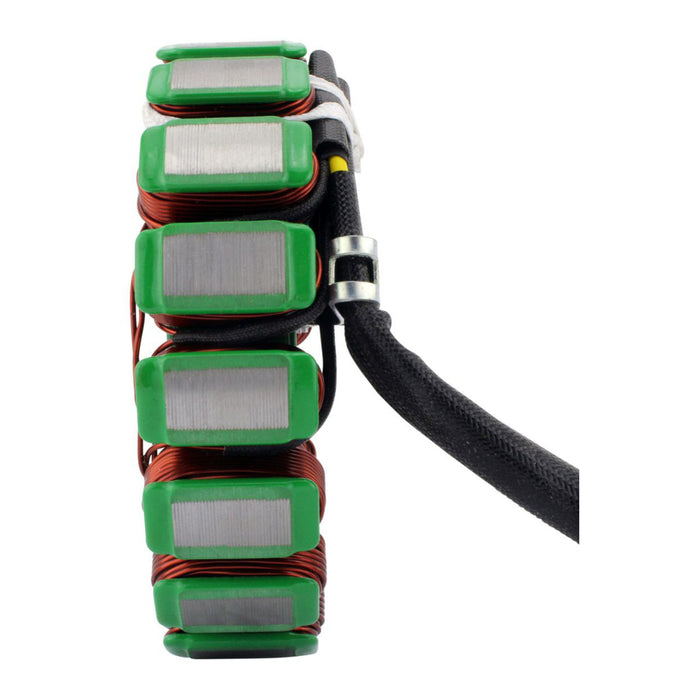

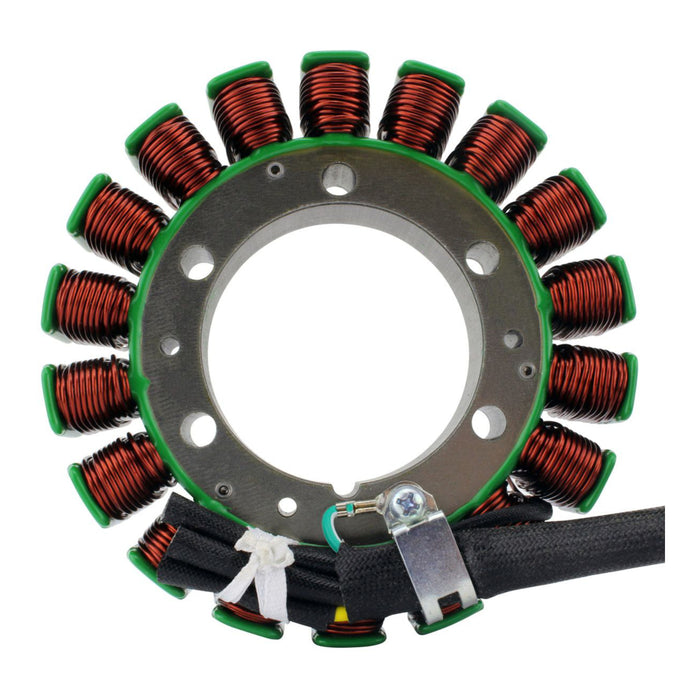

GENERATOR STATOR HOND TRX 650 RINCON 03-05'

GENERATOR STATOR HOND TRX 650 RINCON 03-05'

RMSTATOR

SKU RMS010107581

Our Price

$465.60 - $465.60

$465.60

$465.60 - $465.60

$465.60

Dispatched within 2 working days Dispatched within 2 working days Out Of Stock

Quantity

Product Information

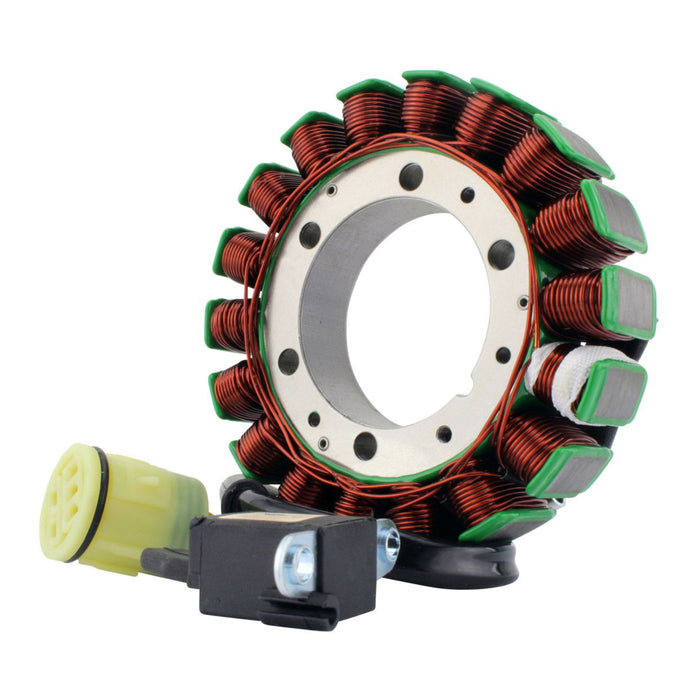

Brand new aftermarket stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation

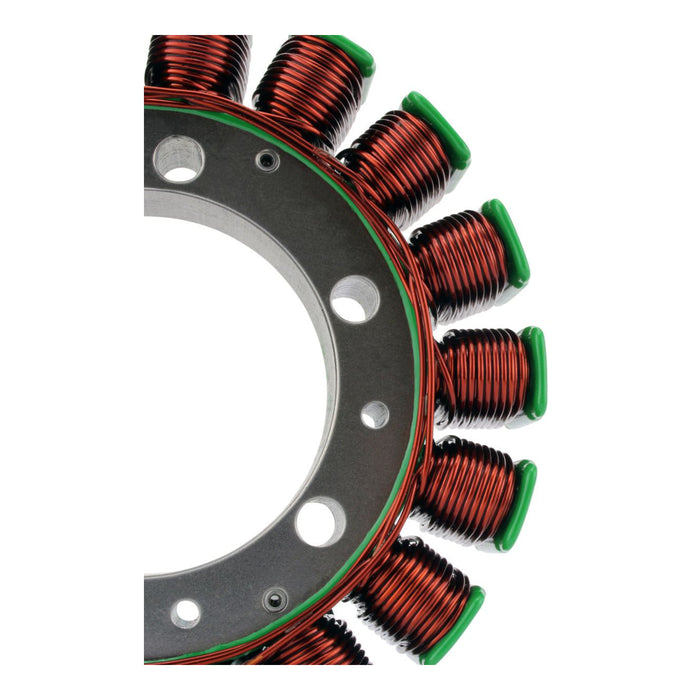

Highest-grade lamination materials
Highest-grade copper windings, resistant to 200 degrees Celsius.

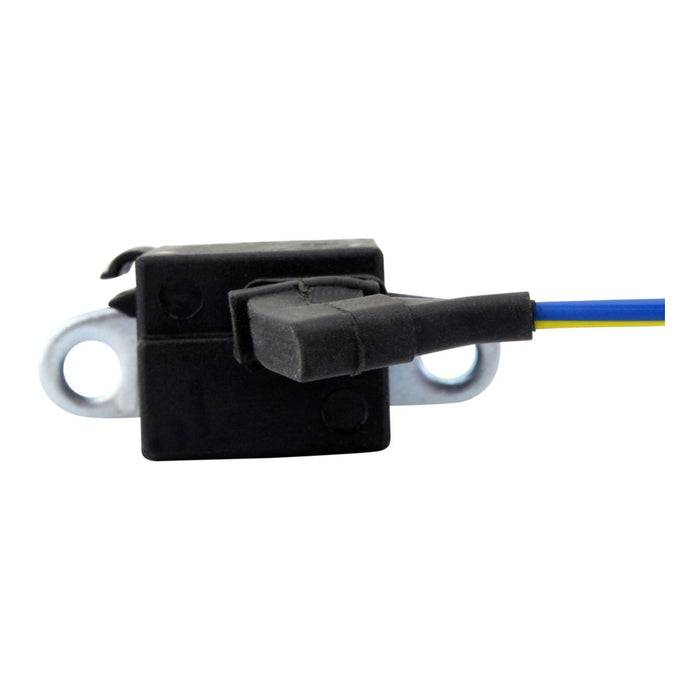

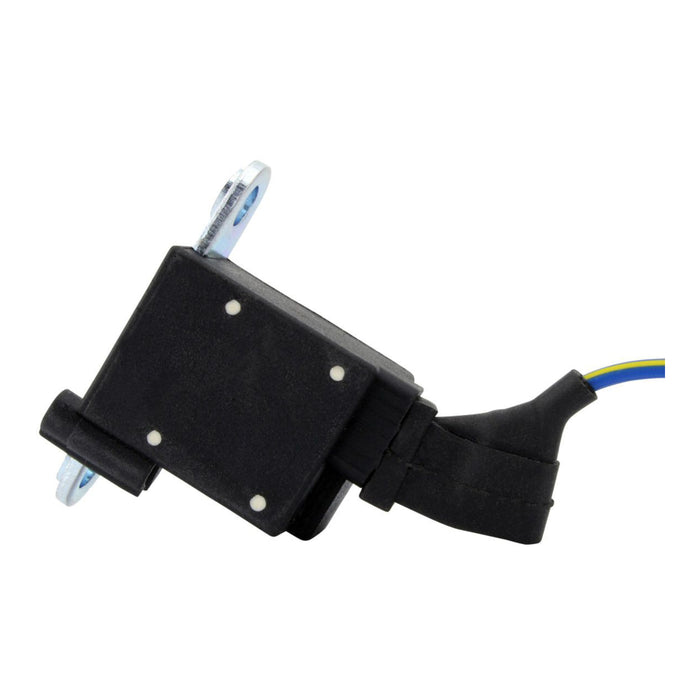

Pick up pulsar coil included

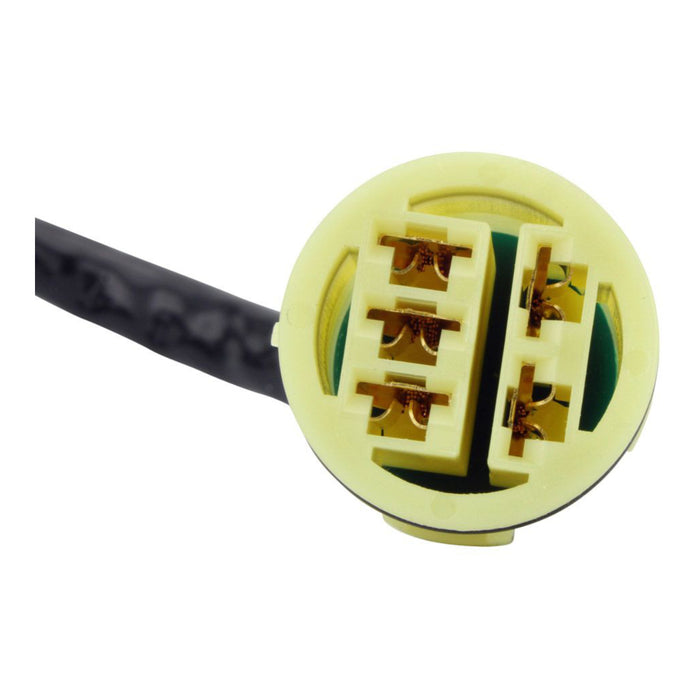

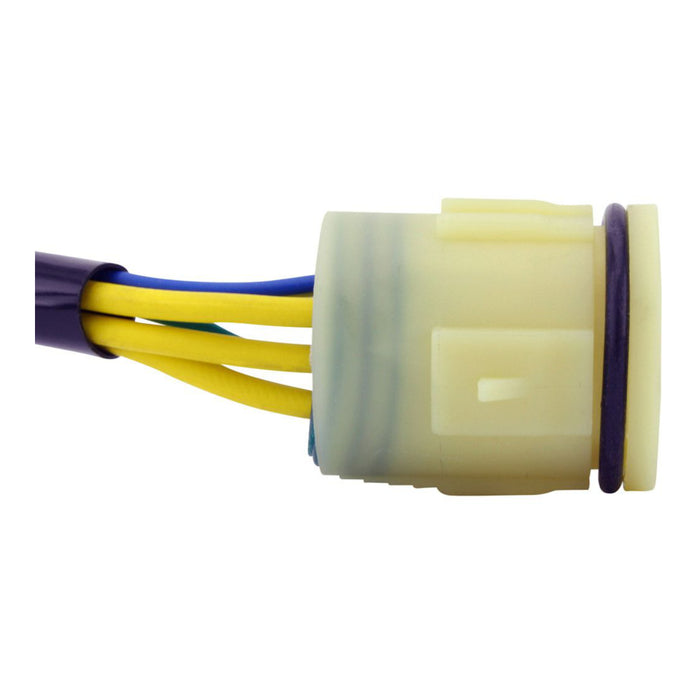

Connector included
Rubber grommet included
All products shipped are tested

Specifications:

Dimensions:

Interior diameter: 54 mm

Exterior diameter: 115 mm

Thickness: 20 mm

Length of wires stator to grommet: 75 mm

Length of wires grommet to plug: 180 mm

Other specifications:

Number of wires: 5
Number of plugs: 1
Number of pins: 5
Number of poles: 18

Wire-to-wire resistance:

Alternator: Yellow to Yellow = 0.6 ohms +-20%
Alternator: Yellow to ground = O.L
Pickup: Blue/Yellow to Green= 340 ohms +-20%
