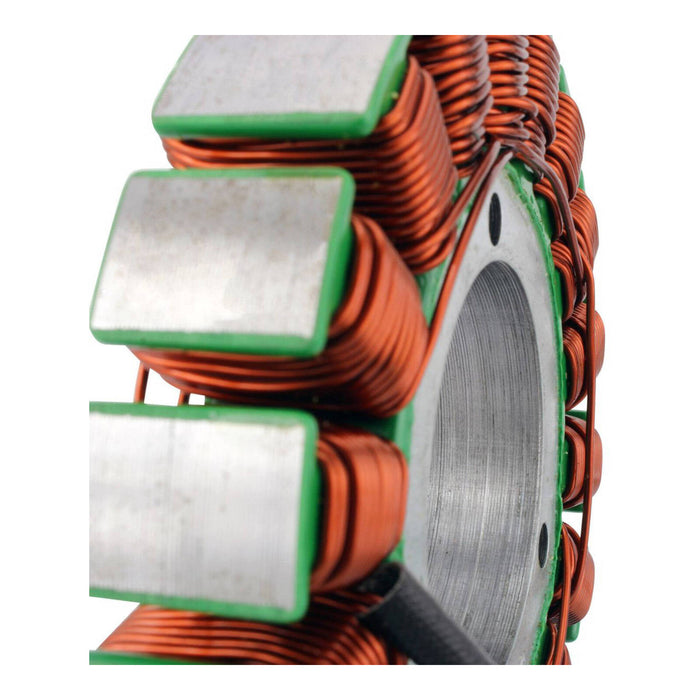

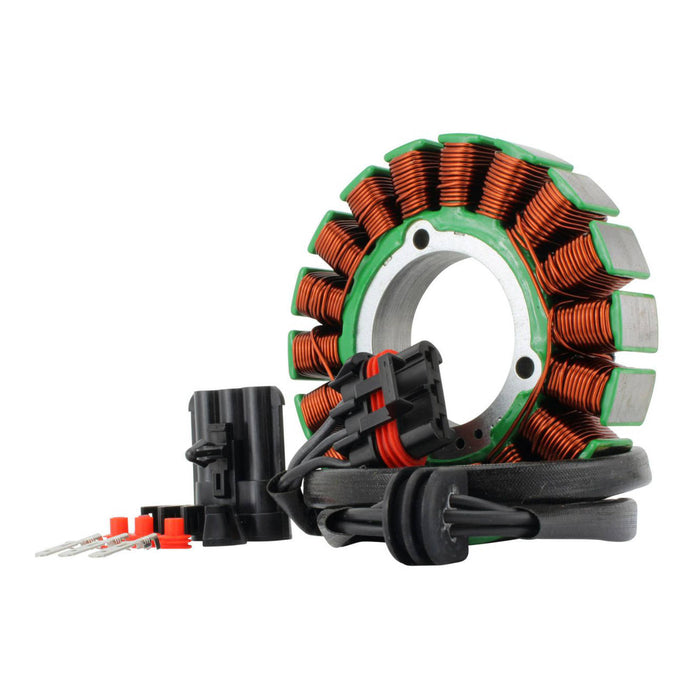

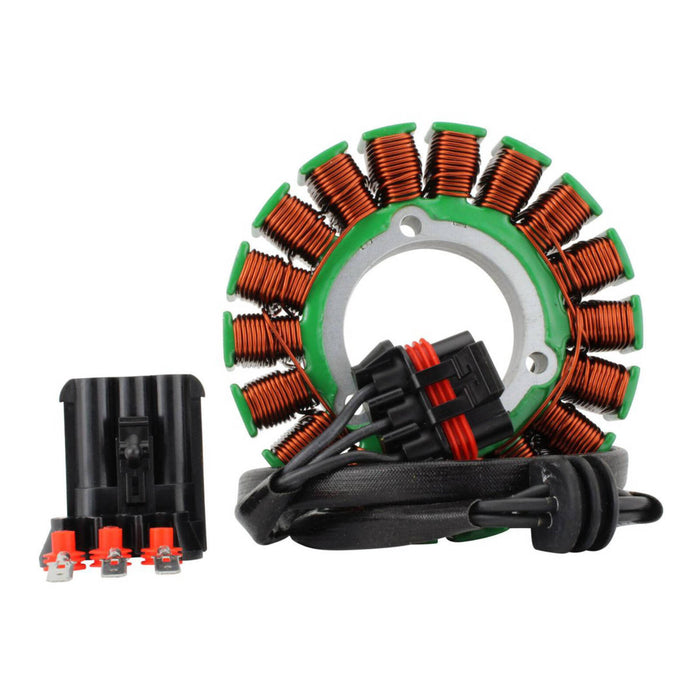

GENERATOR STATOR POLARIS RANGER 1000 18-21 (RMS010-107104)

GENERATOR STATOR POLARIS RANGER 1000 18-21 (RMS010-107104)

RMSTATOR

SKU RMS010107104

Our Price

$465.60 - $465.60

$465.60

$465.60 - $465.60

$465.60

Dispatched within 2 working days Dispatched within 2 working days Out Of Stock

Quantity

Product Information

Plug-and-play replacement stator from RM Stator.

Dimensions:

Interior diameter: 54 mm
Exterior diameter: 126 mm
Thickness: 21 mm
Length of wires stator to grommet: 120 mm
Length of wires grommet to plug: 680 mm

Other specifications:

Number of wires: 3
Number of plugs: 1
Number of pins:3
Number of poles: 18
Wire to wire resistance:
- Alternator: Between each Yellow = 0.6 ohms +-20%
- Alternator: to ground = O.L

Details:

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius
Connectors included
Rubber grommet included
All products shipped are tested
