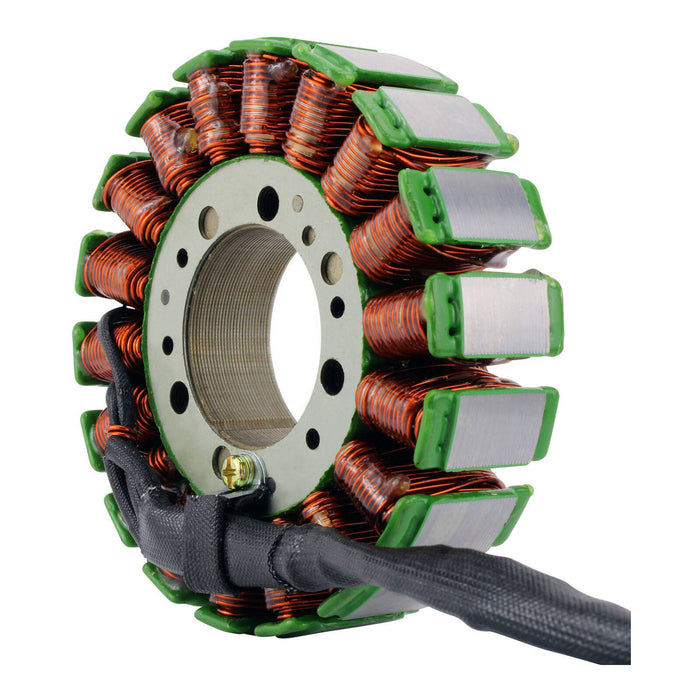

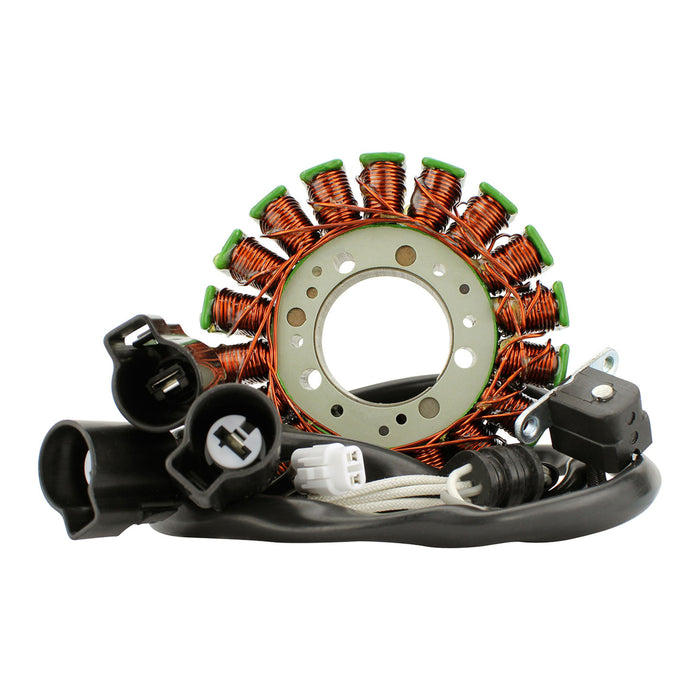

GENERATOR STATOR YAM YXZ1000R 19-21 (RMS010-107076)

GENERATOR STATOR YAM YXZ1000R 19-21 (RMS010-107076)

RMSTATOR

SKU RMS010107076

Our Price

$465.60 - $465.60

$465.60

$465.60 - $465.60

$465.60

Dispatched within 2 working days Dispatched within 2 working days Out Of Stock

Quantity

Product Information

Brand new aftermarket stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest-grade lamination materials
Highest-grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
All products shipped are tested

Specifications:

Dimensions:

Interior diameter: 42 mm

Exterior diameter: 115 mm

Thickness: 23 mm

Length of wires stator to grommet: 200 mm

Length of wires grommet to plug: 1020 mm

Length of pickup coil's wire to grommet: 110 mm

Other specifications:

Number of wires: 5
Number of plugs: 4
Number of pins: 5
Number of poles: 18

Wire-to-wire resistance:

Alternator: White to White = 0.5 ohms +-20%
Pickup: Black to Grey = 512 ohms +-20%
