RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

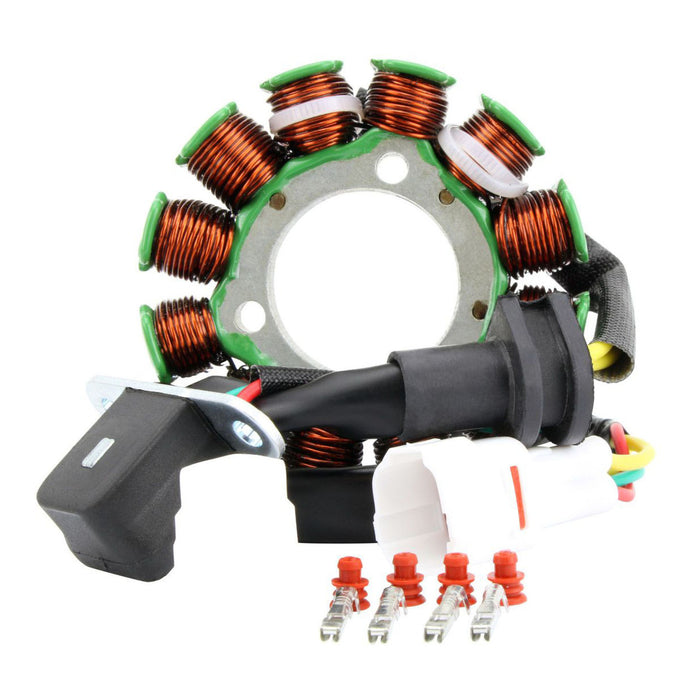

• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions :

• Interior diameter: 32mm
• Exterior diameter: 76.6mm
• Thickness: 14mm
• Length of wires stator to grommet: 90mm
• Length of wires grommet to plug: 380mm
• Length of pickup coil's wire to grommet: 30mm

Other specifications :

• Number of wires: 4
• Number of plugs: 1
• Number of pins: 4
• Number of poles: 12

Wire to wire resistance :

• Alternator: Yellow to Yellow = 1.8 ohms +-20%
• Pickup : = Red to Green = 100 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
