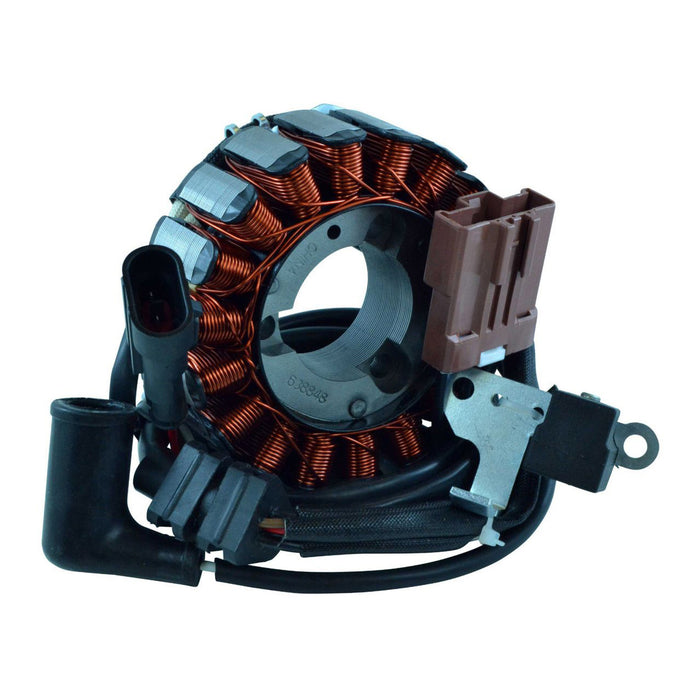

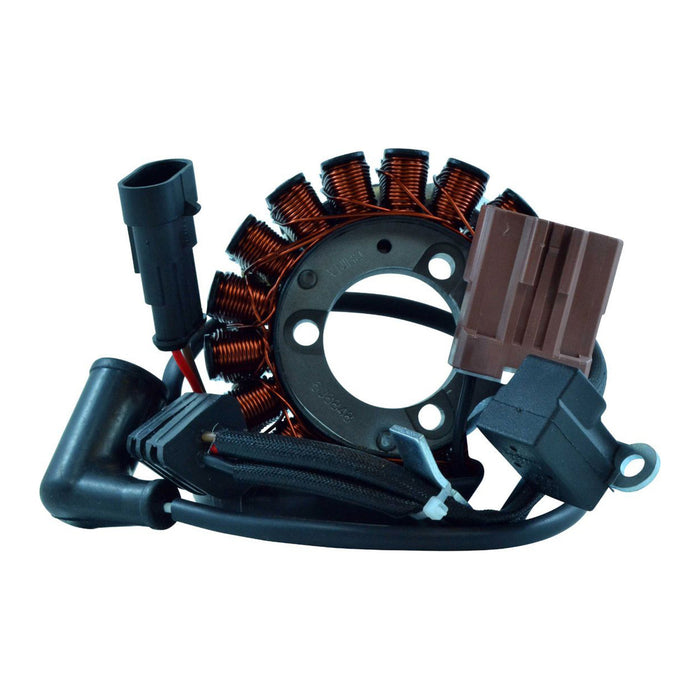

STATOR ASSTD SCOOTERS 2003-2017 (RMS010-104193)

STATOR ASSTD SCOOTERS 2003-2017 (RMS010-104193)

RMSTATOR

SKU RMS010104193

Our Price

$213.40 - $213.40

$213.40

$213.40 - $213.40

$213.40

Dispatched within 2 working days Dispatched within 2 working days Out Of Stock

Quantity

Product Information

Brand new aftermarket stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest-grade lamination materials
Highest-grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
All products shipped are tested

Specifications:

Dimensions:

Interior diameter: 36 mm

Exterior diameter: 95 mm

Thickness: 32 mm

Length of wires stator to grommet: 165 mm

Length of wires grommet to plug:585 mm / 780 mm

Length of pickup coil's wire to grommet: 88 mm

Other specifications:

Number of wires: 6
Number of plugs: 3
Number of pins: 6
Number of poles: 18

Wire-to-wire resistance:

Alternator :Yellow between each Yellow = 0.4 ohms +-20%
Pickup: Green/White to Yellow/White = 125 ohms +-20%
Source: Black/Red to Ground = 210 ohms +-20%
